I found out my awning was done at a rest stop outside Amarillo, when I walked around the rig and saw eight feet of vinyl waving at traffic like a checkered flag. If you’re in the same boat, here’s the honest summary before anything else: learning how to replace camper awning fabric is a very doable afternoon job with a helper, usually in the range of a hundred to three hundred dollars in materials, and swapping the entire awning assembly is a half-day job that’s more about careful mounting than muscle. Type “how to replace camper awning” into a search bar and half the results assume you already speak fluent RV tech. This guide doesn’t. It walks both jobs in plain English, flags the one genuinely risky part (a wound-up spring), and tells you exactly when paying a shop is the smarter play. Here’s what “done” looks like up close — and it’s the first thing worth diagnosing.
Fix the Fabric or Replace the Whole Thing?
People searching how to change a camper awning usually mean one of two very different jobs, and picking the right one saves real money. The fabric is a wear item, like tires. The hardware — the arms, the roller tube, the mounting rail — is the skeleton, and it often outlives two or three sets of fabric. So diagnose before you shop:
| What you’re seeing | What it needs |
|---|---|
| Tears, pinholes, chalky fading, mildew stains | Fabric only |
| Fabric fine, but seams letting go | Fabric only (or a repair tape stopgap) |
| Bent or kinked arms, wobbly hardware | Whole unit |
| Dented or creased roller tube | Whole unit |
| Electric awning motor dead, out of warranty | Whole unit (or motor swap) |
| No awning at all, bare wall | New install |
One more branch: if your rig has no awning rail and you mostly need shade at a seasonal site, a standalone canopy or tarp setup can be a cheaper answer than drilling into your camper at all.
Meet the Parts: a 60-Second Anatomy Lesson
Five terms cover almost everything. The awning rail is the skinny aluminum channel running along the top of your camper wall; the fabric’s edge slides through it like a curtain track. The roller tube is the long barrel the fabric wraps around. Inside one or both ends of that tube lives the torsion spring — a coiled steel spring wound up tight so the awning rolls itself closed. Think of it as a wind-up toy with a grudge. The end caps seal the tube and hold the spring’s tension. The arms connect everything to the lower wall and set the pitch. Fabric edges have a polycord, a rope-like bead sewn into the hem, and that bead is what actually rides in the channels. Electric awnings swap the manual spring ritual for a motor, which makes the fabric swap calmer and the full replacement slightly more wiring-flavored.
The Spring Deserves Your Respect
Here’s the one paragraph to read twice. On a manual awning, that torsion spring is storing energy right now, even parked, even rolled up. Before any bolt comes loose, the spring gets locked: most end caps have a small hole where a cotter pin or locking pin slides through to freeze the tension in place, and your model’s manual shows exactly where. Wear gloves and eye protection, keep a firm grip on the end cap whenever a pin is out, and never, ever let a wound cap go free-spinning. When it’s time to set tension on the new fabric, use the number of turns printed in your manufacturer’s instructions, not a number from a stranger’s video about a different awning. And if any of this paragraph makes your stomach drop? At CamperishTrails we’re proud do-it-yourselfers, and the one job we’ve happily paid a shop for was a spring rebuild. That’s not defeat. That’s math.
An awning spring doesn’t give warnings. It gives lessons. Pin it before anything else moves.
How to Replace Camper Awning Fabric, Step by Step
Block out an unhurried afternoon, recruit one patient helper, and set up two ladders. Here’s the flow:
- Measure and order right. Awning fabric is sold by the roller-tube length measured arm-to-arm, not the fabric width, so measure the tube and match your order to it. While you’re choosing: vinyl is the affordable, wipe-clean standard; woven acrylic breathes better and shrugs off sun, for more money.
- Stage the job. Park somewhere flat with room to walk the full awning length. Lay out a tarp for the old fabric to land on.
- Pin the spring as covered above, then extend the awning partway per your manual so the fasteners are reachable.
- Free the ends. Remove the travel locks and the small screws that pin the fabric and polycord in place at the ends of the rail and tube. Bag every screw; they’re all going back.
- Slide the old fabric out. One person feeds at the tube, one guides at the rail, and everything moves toward the same end of the camper. A quick shot of silicone spray in the rail channel turns a wrestling match into a slide.
- Prep the new fabric. Wrap a bit of tape around each polycord end so it can’t fray mid-slide, and double-check which edge goes to the rail. Ask me why I know the fraying part.
- Feed it in and center it. Same dance in reverse: two channels, two cords, slow and straight. Center the fabric on the tube, then reinstall those end screws.
- Restore tension and test. Wind the spring to your manual’s spec, pull the pin, and roll the awning out and in a few times. It should close itself with a calm, even pull.
A quick note for electric awning owners: your version of this job is gentler. There’s no spring ritual, just a motor holding the tube, so the work is mostly the same slide-out, slide-in dance with the awning run out to the position your manual specifies. The trade is that you’re following a powered sequence instead of a pin, so read those specific pages before touching a fastener.
Installing a Whole New Awning

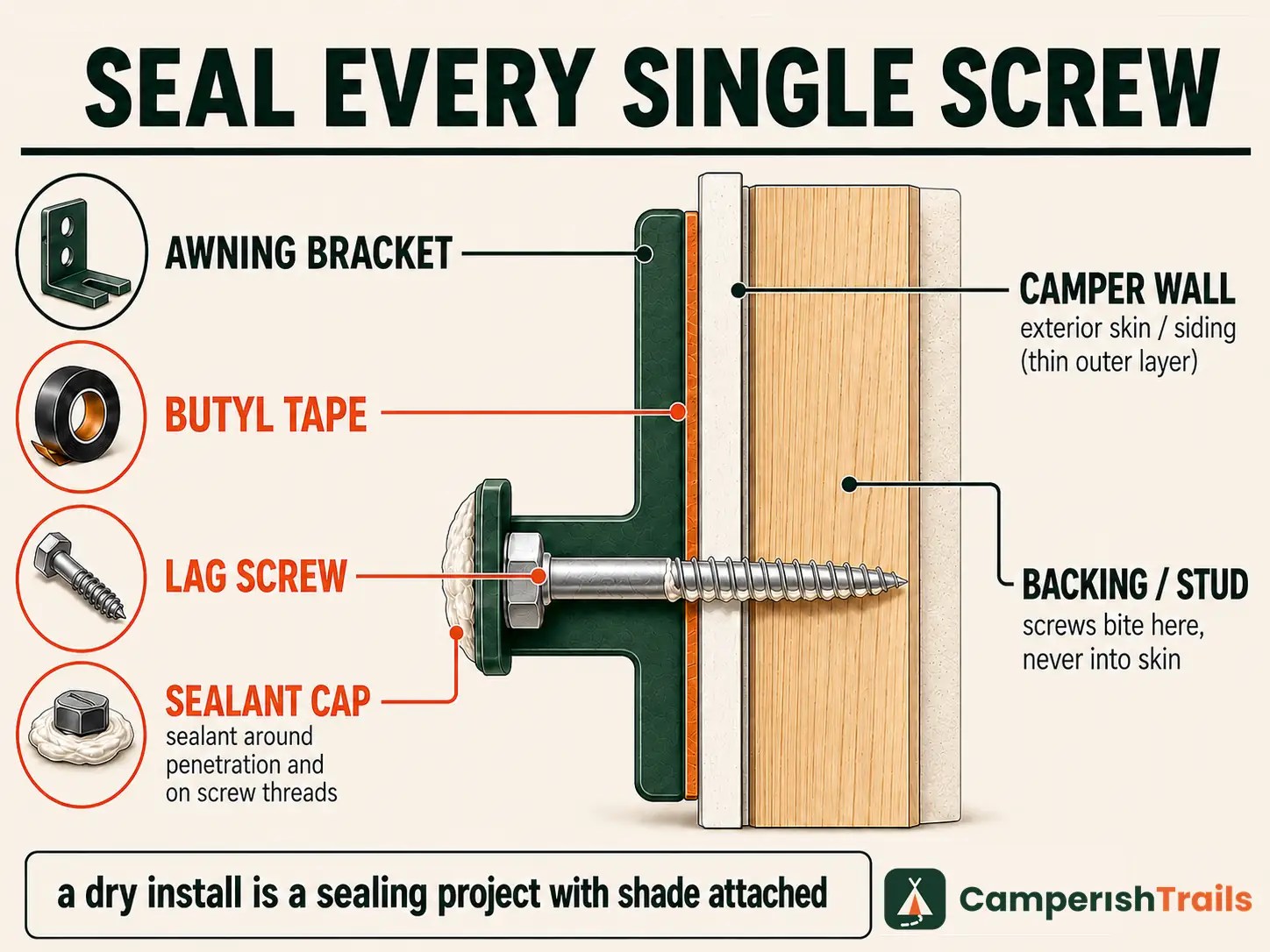

Most guides on how to replace camper awning parts stop at fabric swaps, but sometimes the skeleton itself is toast, or the wall never had one. If you’re figuring out how to install an awning on a camper for the first time, the job is really three decisions and one careful hour with a drill. First, size it: awnings are sold to match the wall space between doors, lights, and storage hatches, so measure twice and check your ceiling height for arm clearance. Second, find solid backing. Arm brackets carry real load, so they anchor into the wall studs or factory backing plates, and your camper maker can tell you where those hide. Third, seal like you mean it. Every screw gets butyl tape behind the bracket and a cap of exterior sealant on top, because a leak-free awning install is mostly a sealing project with some shade attached. Many how to install camper awning kits include a paper template that takes the guesswork out of bracket spacing; use it. Lifting the assembled unit onto the rail is a genuine two-or-three-person moment, and on electric models, if 12-volt wiring isn’t your comfort zone, have a tech do that one connection. No shame, all dryness.
Open It Right, So the New One Lives Long

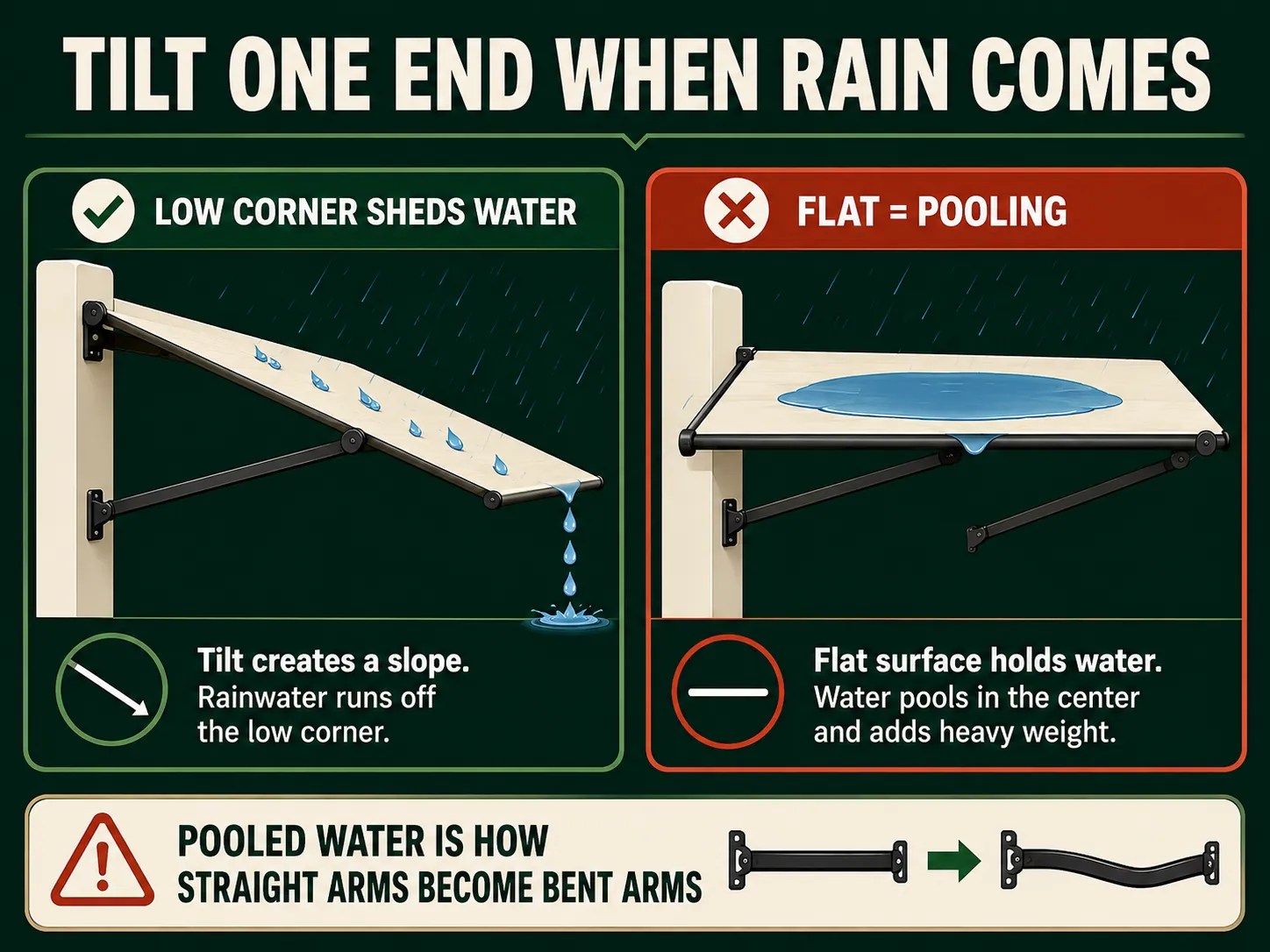

Funny thing: a lot of awning damage starts with the opening. If you’re new to the rig and still learning how to open camper awning arms, here’s the 20-second version. Flip the travel locks open first, every time. Pull or power the fabric out slowly until it’s taut, not drum-tight. Then set the pitch, and if rain is anywhere in the forecast, drop one arm a few inches lower than the other so water runs off the low corner instead of pooling in the middle. A pooled puddle gets heavy fast, and heavy is how straight arms become bent arms.
Wind Is the Real Awning Killer
Ask around any campground and you’ll hear the same story with different names in it: a beautiful afternoon, a quick trip to town, one rogue gust, one awning wrapped over the roof. Wind destroys more awnings than age does. The fix costs nothing: roll it in whenever you leave camp, whenever you turn in for the night, and whenever the trees start talking. The National Weather Service’s wind safety guidance notes that awnings and carports take damage even in “isolated” wind events well below storm strength, which matches every campground story I’ve ever collected. It’s the same lesson wind teaches tent campers when they’re pitching in wind: fabric always loses the argument. Retracting takes thirty seconds. Replacing takes this whole article.
Keep the New One New
Four small habits stretch a fresh awning across a decade instead of a few seasons:
- Rinse and dry before rolling. Storing damp fabric brews mildew inside the tube, and mildew eats vinyl coatings from the inside out. Leave it rolled out with one arm dropped until it’s bone dry — the same low-corner trick that sheds rain sheds wash water.
- Inspect each spring. A minute per end cap and bracket at the start of the season catches loose screws while they’re still a screwdriver problem.
- Look around while you’re up there. Ladder time is inspection time, and the same walk-around that checks your rail is a perfect moment for keeping mice out of your camper too.
- Store it clean and slack. Give the fabric a wash and a full dry when you’re winterizing your camper for the season. Deep-cleaning an awning has tricks of its own, and those deserve a whole post.
Quick Answers
Spoken-style answers to the questions people actually ask about how to replace camper awning setups.
Replacement fabric usually runs one hundred to three hundred dollars if you do the labor yourself. A complete new awning typically lands in the several-hundred to low-four-figure range installed, depending on size and whether it’s manual or electric.
Technically yes, practically no. The fabric wants to feed into two channels at once across a long span, and a second set of hands turns a frustrating day into a smooth afternoon.
Plan on two to four hours for a fabric swap with a helper, and about half a day for a full awning installation. First-timers should add an hour for reading the manual and finding dropped screws
Usually not. If the arms are straight and the roller tube rolls smoothly, new fabric restores the awning completely. You only buy the whole unit when the hardware itself is bent, crushed, or dead.
The Bottom Line
So that’s how to replace camper awning fabric, when to swap the whole assembly instead, and the one spring rule that keeps the job safe: pin it first, tension it to your manual, and hand it to a pro without embarrassment if it’s not your kind of fun. Do the wind and rain habits, and this is a repair you’ll make once a decade instead of once a season.
From all of us at CamperishTrails, may your shade stay put and your gusts stay gentle.
